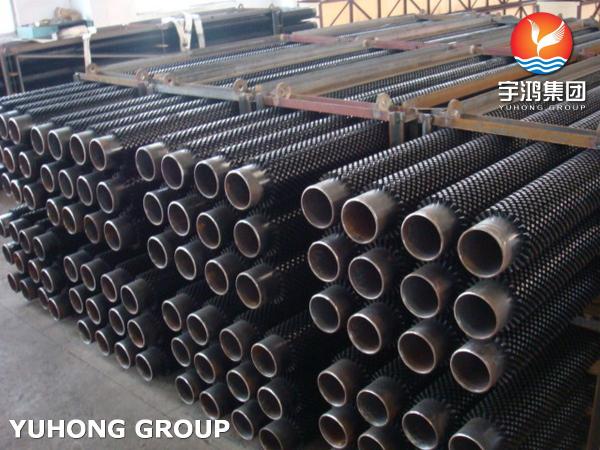

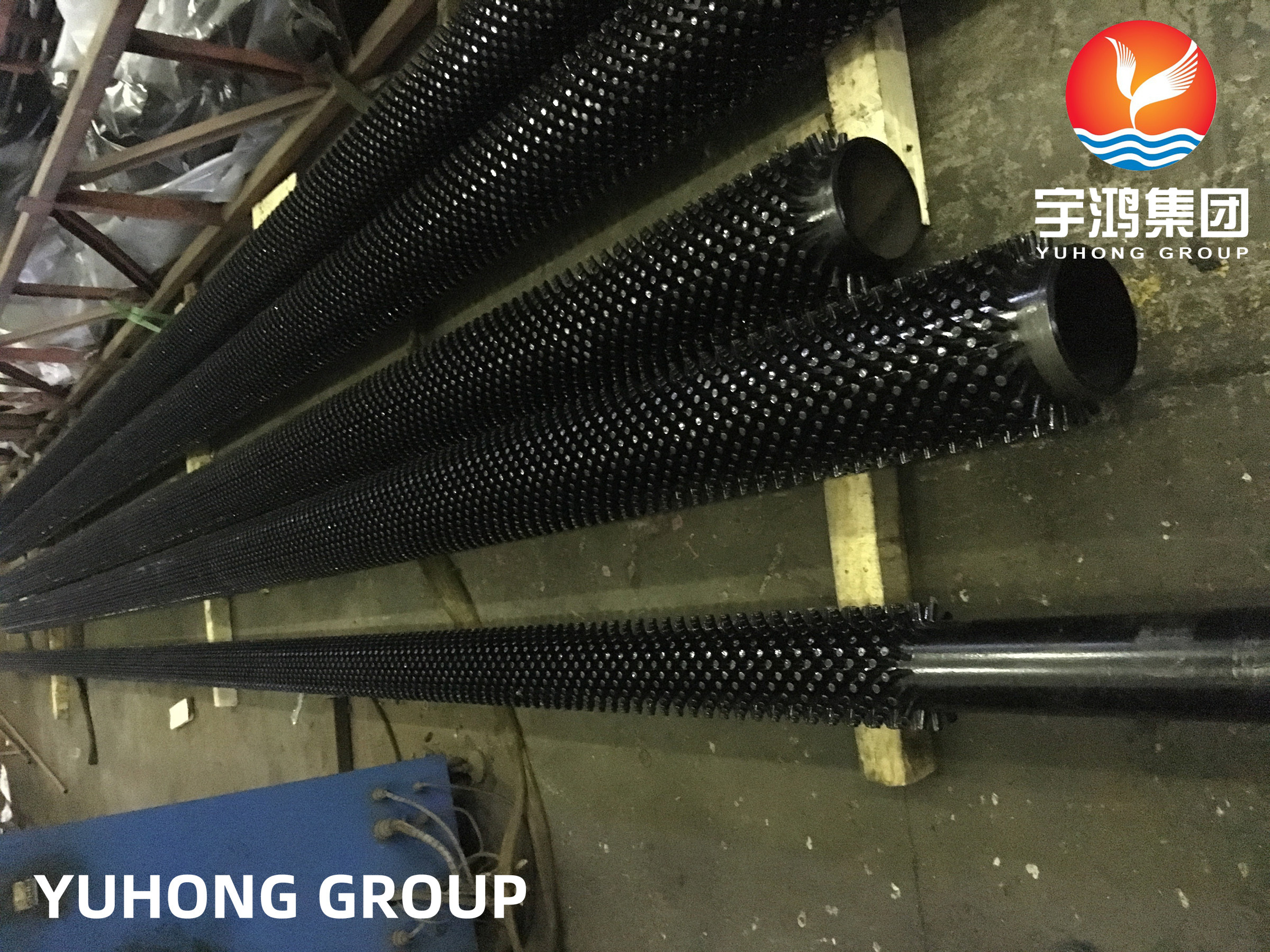

ASTM A335 P9 Studded Fin Tube For Fired Heater Steam Boiler

  • 1
  • 2
  • 3

Brand Name : YUHONG

Model Number : Studded Fin Tube

Certification : ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Place of Origin : China , Korea

MOQ : 1 PC

Price : 1 - 10000 USD

Payment Terms : L/C, T/T

Supply Ability : 10000 Tons/Month

Delivery Time : 5 - 90 Days

Packaging Details : Ply - Wooden Case + Iron Frame

Base Pipe : Alloy Steel Seamless Pipe: ASTM A335 P11, P12, P1, P22, P23, P5, P9, P91, P92

Welding Type : High Frequency Welding

Fin Type : Studded Tube, Pin Tube, Oil Furnace Tube , Steam Furnace Tube, Reforming Tube

Fin Height : 5~30mm

Fin Material : Carbon Steel

Fin pitch : 8~30mm

Contact Now

ASTM A335 P9 Studded Fin Tube For Fired Heater,Steam Boiler

ASTM A335 GR.P9 Studded Fin Tube are made from high-alloy steel and are designed for high-temperature and high-pressure applications.ASTM A335 G.P9 Studded Fin Tube maintain excellent strength and hardness at elevated temperatures, making them suitable for use in boilers and heat exchangers.

This material exhibits high resistance to corrosion, making it ideal for use in chemical processing and petrochemical environments.This material have good weldability, allowing for easy connections with other materials, suitable for complex structural applications and can withstand significant mechanical loads under high pressure, ensuring system stability and safety.

Chemical positions:

ASTM A335 P9
C Mn P S Si Cr Mo
≤0.15% 0.30~0.60% ≤0.025% ≤0.025% 0.50~1.00% 8.0~10.0% 0.90~1.10%‌

Mechanical properties of ASTM A335:

Property Tensile Strength Yield Strength Elongation Hardness Modulus of Elasticity Poisson's Ratio
Value 415 - 550 MPa (60 - 80 ksi) 240 MPa (35 ksi) minimum 20% minimum 85 HRB maximum, 200 HB maximum ~200 GPa (29 x 10^6 psi) ~0.3

Specifications For Various Types Of Finned Tubes:

Yuhong Group Fin Tube Specification
Type Description Base tube Fin specification (mm)
O.D. (mm) Fin pitch Fin height Fin thick
Embedded G-type fin tube 16-63 2.1-5 <17 ~0.4
Extruded Single metal combined metal 8-51 1.6-10 <17 0.2-0.4
Low fin tube t-type fin tube 10-38 0.6-2 <1.6 ~0.3
Bamboo tube corrugated tube 16-51 8~30 <2.5 /
Wound L/KL/LL type fin tube 16-63 2.1-5 <17 ~0.4
String String fin tube 25-38 2.1-3.5 <20 0.2-0.5
U-type U-type tube 16-38 / / /
Welding HF-welding fin tube 16-219 3~25 5~30 0.8-3
H/HH type fin tube 25-63 8~30 <200 1.5-3.5
Studded fin tube 25-219 8~30 5~30 φ5-20

Advantages:

  • Excellent Sealing Performance
  • Corrosion Resistance
  • High Strength and Durability
  • Easy Installation
  • Enhanced Heat Transfer
  • Versatility
  • Low Maintenance

Applicatons:

  • Heat Exchangers
  • Cooling Systems
  • Piping Systems
  • Marine and Offshore Equipment
  • Power Generation Equipment
  • Food and Beverage Processing Equipment
  • Refrigeration Equipment

ASTM A335 P9 Studded Fin Tube For Fired Heater Steam Boiler
