ASTM A106 GR.B Studded Fin Tube With Carbon Steel Q235B Stud Material For Heater

Name: ASTM A106 GRB Studded Fin Tube With Carbon Steel Q235B Stud Material For Heater
Brand: Yuhong
Price: 1 USD

ASTM A106 GR.B Studded Fin Tube With Carbon Steel Q235B Stud Material For Heater Manufactures

Brand Name : Yuhong

Model Number : ASTM A106 GR.B

Certification : DNV, BV, PED, LR, ABS, TS, CCS

Place of Origin : China

MOQ : 1 pc

Price : Negotiable

Payment Terms : L/C,T/T

Delivery Time : 7-15DAYS

Packaging Details : Ply-wooden Case /Iron Case/ Bundle with plastic Cap

Base Tube Material : ASTM A106 GR.B

Fin Type : Studded

Stud Connection : High Frequency Welding

Stud Material : Q235B, Carbon Steel

Testing : HT, ET

Stud Dia. : 12.7mm

Stud Height : 25.4mm

Stud Pitch : 19.1mm

Finned Length : 11240mm

Application : Heater, Furnace

Contact Now

Studded Fin Tube ASTM A106 GR.B With Carbon Steel Q235B Stud Material For Heater

Key Features:

Base Tube Material: ASTM A106 Gr.B Carbon Steel, offering excellent strength and heat resistance.
Stud Material: Q235B Carbon Steel, providing high mechanical strength and good weldability.
Fin Type: Studded Fins, welded for increased heat transfer surface and durability.
Application: Designed for heaters, particularly in industrial applications requiring efficient heat transfer and durability under high temperatures.

Technical Specifications:

Property	Base Tube (ASTM A106 Gr.B)	Stud Material (Q235B)
Outer Diameter (OD)	25.4 mm - 101.6 mm	Customizable based on design
Wall Thickness	3.0 mm - 12.0 mm	-
Stud Diameter	-	6 mm - 15 mm
Stud Height	-	10 mm - 25 mm
Stud Attachment	Resistance welded

Chemical Composition:

Element	ASTM A106 Gr.B (Base Tube)	Q235B (Stud Material)
Carbon (C)	≤ 0.30%	≤ 0.22%
Manganese (Mn)	0.29 - 1.06%	0.30 - 0.70%
Phosphorus (P)	≤ 0.035%	≤ 0.045%
Sulfur (S)	≤ 0.035%	≤ 0.050%
Silicon (Si)	≤ 0.10%	≤ 0.35%

Mechanical Properties:

Property	ASTM A106 Gr.B (Base Tube)	Q235B (Stud Material)
Tensile Strength	415 MPa - 585 MPa	375 - 500 MPa
Yield Strength	≥ 240 MPa	≥ 235 MPa
Elongation	≥ 20%	≥ 20%

Advantages:

Enhanced Heat Transfer: Studded fins increase the surface area for efficient heat exchange.
Durability: Welded studs provide strong bonding, ensuring reliability under thermal and mechanical stress.
Cost-Effective: Combining ASTM A106 Gr.B with Q235B offers excellent performance at a reasonable cost.
Versatile Design: Suitable for heaters in a wide range of industrial environments.

Applications:

Industrial Heaters: Used in oil refineries, chemical plants, and petrochemical industries.
Power Generation: Heat transfer in boiler systems.
Process Equipment: For heat exchangers requiring robust and efficient designs.

ASTM A106 GR.B Studded Fin Tube With Carbon Steel Q235B Stud Material For Heater

Product Tags:

Heater Studded Fin Tube

ASTM A106 GRB Studded Fin Tube

Carbon Steel Studded Fin Tube

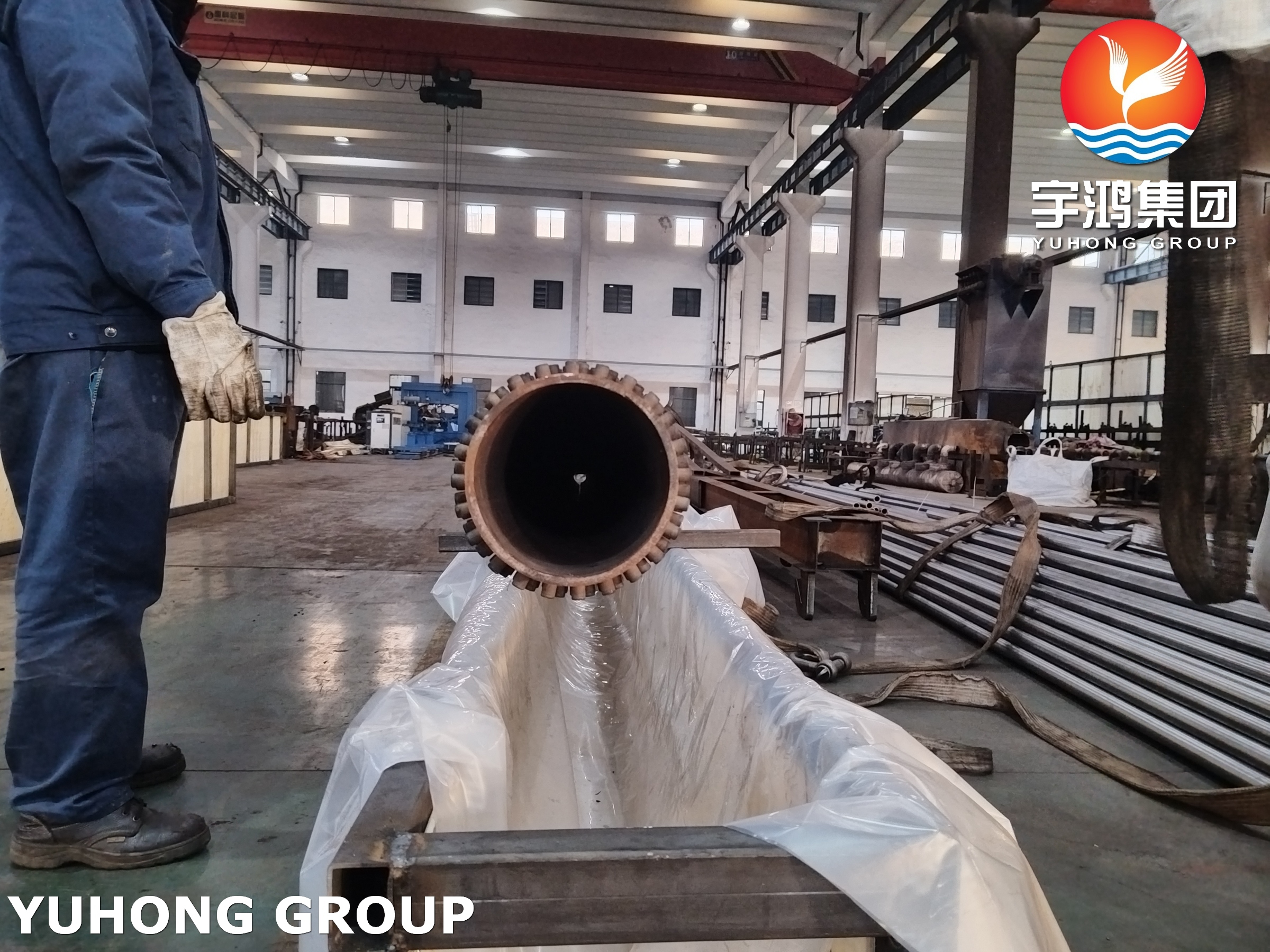

ASTM A106 GR.B Studded Fin Tube With Carbon Steel Q235B Stud Material For Heater Images
