ASME SA335 P22 Alloy Steel HFW Solid Finned Tube for Refinary Application

Name: ASME SA335 P22 Alloy Steel HFW Solid Finned Tube for Refinary Application
Brand: YUHONG
Price: 1 USD

ASME SA335 P22 Alloy Steel HFW Solid Finned Tube for Refinary Application Manufactures

Brand Name : YUHONG

Model Number : ASME SA335 P22

MOQ : 200-500KGS

Price : Negotiable

Payment Terms : L/C,T/T,AT,SIGHT

Supply Ability : According to Clients' requirements

Delivery Time : 45-75 Days (Depend on Customer's Requiremet

Packaging Details : Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps)

Certification : DNV, BV, PED, LR, ABS, TS, CCS

Place of Origin : China

Bare Tube Specification&Material : ASME SA335 P22

Fin Type : Solid Finned Tube / High Frequency Welding Finned Tube

Base Tube : 16mm-219mm

Fin Pitch : 3mm-25mm

Fin Hight : 5mm-30mm

Fin Thick : 0.8mm-3mm

Application : Furnace

Contact Now

ASME SA335 P22 Alloy Steel HFW Solid Finned Tube for Refinary Application

1. Description of ASME A335 P22 HFW Finned Tube

The ASME A335 P22 High-Frequency Welded Finned Tube is a premium-grade heat transfer solution engineered for extreme temperature and pressure conditions. Constructed from ASME A335 P22 alloy steel (a chromium-molybdenum steel renowned for high-temperature strength), this finned tube features helical or longitudinal fins precision-welded using high-frequency currents. The HFW process ensures a seamless, crack-resistant bond between the P22 base tube and fins (commonly steel or corrosion-resistant alloys), delivering unmatched thermal efficiency, durability, and resistance to creep and oxidation. Certified to ASME standards, it is the go-to choice for critical applications in power generation, petrochemicals, and heavy industry.

2. Chemical & Mechanical Properties of ASME A335 P22 Bare Tube

Chemical Composition (Mass Percentage, %)

Element	Range	Remarks
Carbon (C)	0.05–0.15%	Affects strength and weldability
Manganese (Mn)	0.30–0.60%	Enhances strength and hardenability
Silicon (Si)	≤0.50%	Deoxidizer, improves toughness
Chromium (Cr)	1.90–2.60%	Critical for high-temperature oxidation resistance
Molybdenum (Mo)	0.87–1.13%	Improves high-temperature strength and creep resistance
Phosphorus (P)	≤0.025%	Impurity control (lower is better)
Sulfur (S)	≤0.025%	Impurity control (lower is better)
Others	Residuals per ASME	Elements like Cu, Ni restricted

Mechanical Properties (Typical Values, Base Material)

Property	Value Range	Test Standard/Condition
Tensile Strength (Rm)	≥415 MPa	ASTM A370
Yield Strength (Rp0.2)	≥205 MPa	ASTM A370
Elongation (A5)	≥30%	5D gauge length specimen
Hardness (Brinell HBW)	≤163 HBW	Annealed/normalized + tempered condition
Charpy Impact (V-notch)	≥20 J @ room temperature	ASTM A370
High-Temperature Creep	Refer to temperature curves	e.g., 540℃ creep strength

3. Key Applications

Power Generation: Superheaters, reheaters, and boilers in coal-fired and nuclear plants.
Petrochemical Refineries: High-pressure heat exchangers, reformers, and cracking units.
Industrial Heating Systems: Process heaters, waste heat recovery units, and thermal fluid systems.
Oil & Gas: Steam methane reformers, LNG heat exchangers, and flare gas systems.
Custom Solutions: Tailored for high-stress, high-corrosion environments requiring ASME compliance.

4. Why Choose ASME A335 P22 HFW Finned Tubes?

30% Longer Lifespan vs. standard carbon steel tubes in extreme conditions.
ASME-Certified Quality: Guaranteed safety and reliability for critical systems.
Optimized Heat Transfer: Up to 40% higher efficiency in high-temperature applications.
Global Compliance: Meets ASTM, EN, and ISO standards for international projects.

ASME SA335 P22 Alloy Steel HFW Solid Finned Tube for Refinary Application

Product Tags:

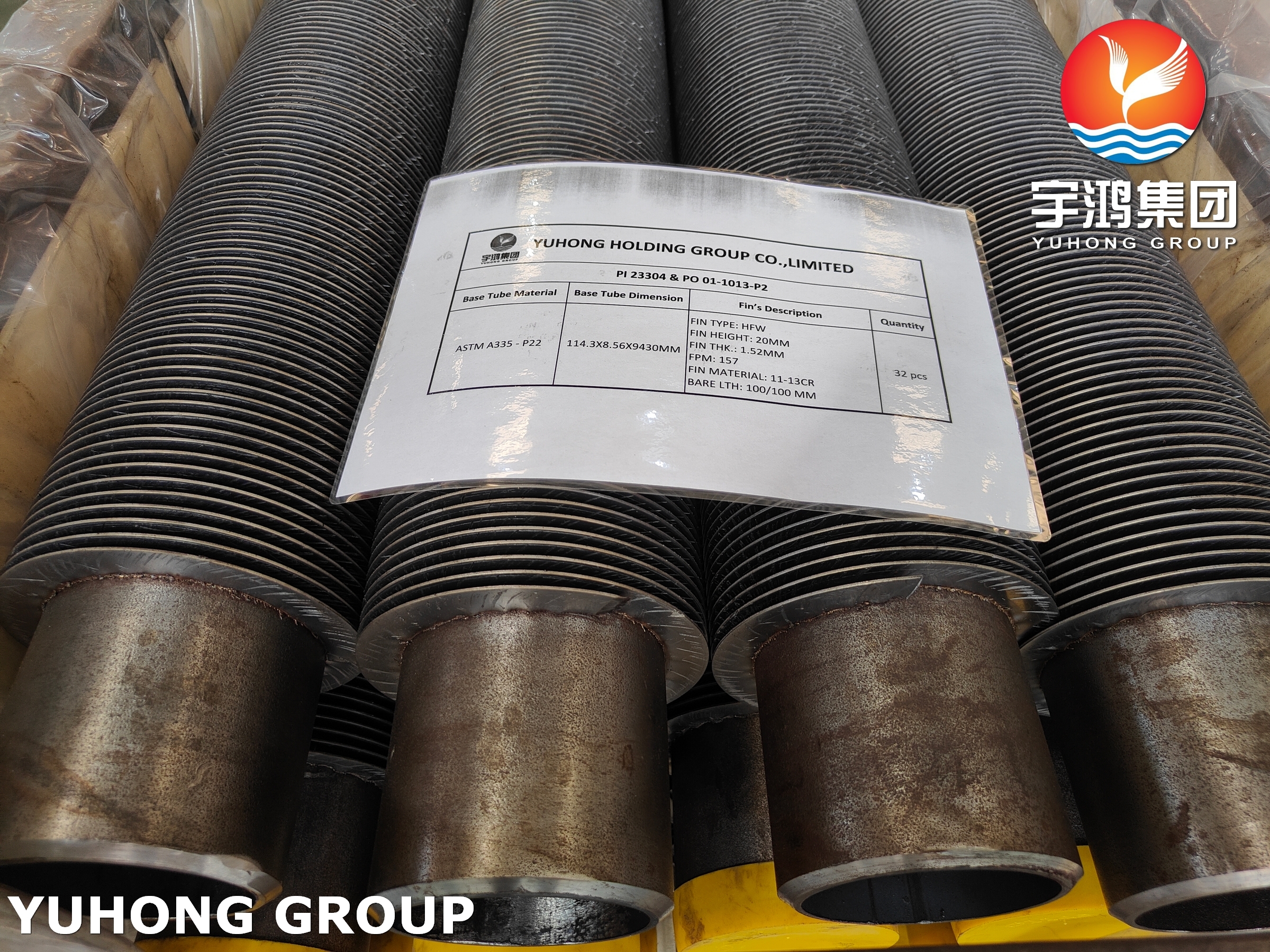

ASME SA335 P22 Alloy Steel HFW Solid Finned Tube for Refinary Application Images
