HFW Fin Tube ASTM A335 P22 Alloy Steel Seamless Tube With 11-13CR Strip For Economizer

Brand Name : Yuhong

Model Number : ASTM A335 P22

Certification : ABS,BV, DNV, LR, CCS, PED

Place of Origin : China

MOQ : 100kgs

Price : Negotiable

Payment Terms : L/C,T/T

Delivery Time : 7days

Packaging Details : plastic woven bags, ply-wooden case with iron steel case

Base Pipe Material : P9, P22

Application : Boiler, Economizer

Length : Max.: 34m/pc

Welding Type : HFW , GMAW, LASER

Production Process : Cold Drawn

Fin Wall Thickness : 0.8-3mm

Fin Material Grade : 11Cr

Fin Thick : 0.8mm-3mm

Contact Now

HFW Fin Tube ASTM A335 P22 Alloy Steel Seamless Tube With 11-13CR Strip For Economizer


Product Overview

This product is a High-Frequency Welded (HFW) fin tube made with ASTM A335 P22 alloy steel seamless base tube, combined with a serrated 11–13% Chromium (Cr) alloy fin strip. Designed for use in economizers, especially in high-temperature and high-pressure environments such as power stations and industrial boilers.


Chemical Composition

Base Tube – ASTM A335 P22

Element Composition (%)
Carbon (C) 0.05–0.15
Manganese (Mn) 0.30–0.60
Phosphorus (P) ≤ 0.025
Sulfur (S) ≤ 0.025
Chromium (Cr) 1.90–2.60
Molybdenum (Mo) 0.87–1.13

Fin Material – 11-13Cr Strip

Element Composition (%)
Chromium (Cr) 11.0–13.0
Carbon (C) ≤ 0.08
Manganese (Mn) ≤ 1.0
Silicon (Si) ≤ 1.0
Phosphorus (P) ≤ 0.040
Sulfur (S) ≤ 0.030

Mechanical Properties

Base Tube – ASTM A335 P22

Property Value
Tensile Strength ≥ 415 MPa
Yield Strength ≥ 205 MPa
Elongation ≥ 30%
Hardness ≤ 163 HB

Fin Material (Typical)

Property Value
Tensile Strength Approx. 450–600 MPa
Yield Strength Approx. 250–350 MPa
Hardness 150–180 HB
Heat Resistance Up to 600°C (continuous)


Advantages

  • Excellent Thermal Conductivity: The HFW bonding ensures low contact resistance between tube and fin for efficient heat transfer.

  • High-Temperature Resistance: Suitable for operation in elevated temperature environments due to the alloy composition.

  • Oxidation & Corrosion Resistance: The 11-13Cr fin provides superior resistance to flue gas corrosion and scaling.

  • Strong Weld Bond: High-frequency welding results in durable and consistent fin attachment, ideal for vibrating environments.

  • Customizable Fin Geometry: Can be made with serrated or solid fins, and varied fin density, thickness, and height.


Applications

  • Economizers in Power Plants

  • Waste Heat Recovery Units (WHRU)

  • Superheated Steam Boilers

  • Process Heating Systems in Refineries

  • Industrial Furnaces and Ovens

HFW Fin Tube ASTM A335 P22 Alloy Steel Seamless Tube With 11-13CR Strip For Economizer


Product Tags:

HFW Fin Tube



ASTM A335 P22 Fin Tube



Alloy Steel Seamless Fin Tube


HFW Fin Tube ASTM A335 P22 Alloy Steel Seamless Tube With 11-13CR Strip For Economizer Manufactures

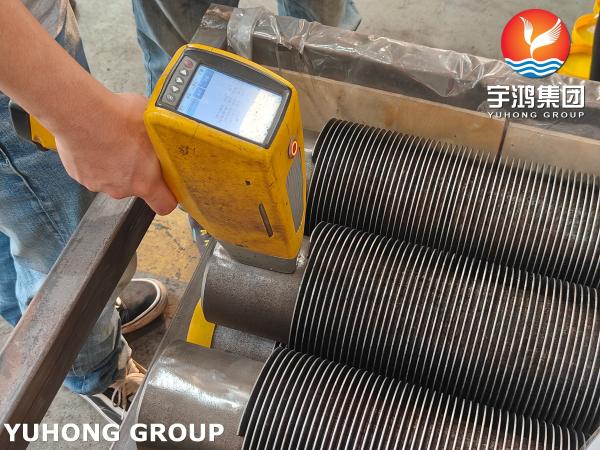

HFW Fin Tube ASTM A335 P22 Alloy Steel Seamless Tube With 11-13CR Strip For Economizer Images
